Worksheets
Every drawing on the site as a labeled sheet and a blank practice sheet, plus a blank lines-plan sheet for drawing your own hull. Free to print.
Each drawing comes as two sheets. The labeled sheet numbers every part on the drawing and names it in the key. The blank sheet keeps the drawing and the numbers but leaves the names empty, so a student writes them in and the labeled sheet becomes the answer key.
They are made for a boating-course class, a club or scout session, or study at home: hand out the blank sheet, check it against the labeled one, then try the self-test on the page each drawing comes from.
Each sheet fits Letter or A4 paper; the line under it says whether it prints portrait or landscape.
-

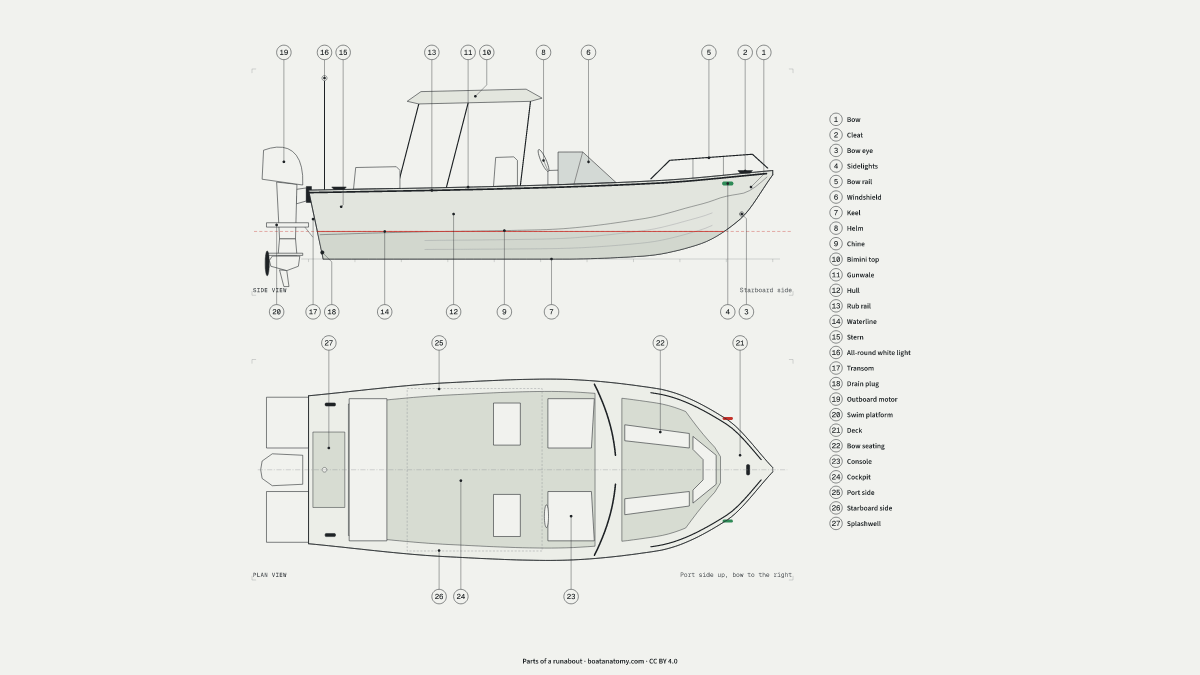

Parts of a runabout
27 numbered parts · side view, plan view · prints portrait
-

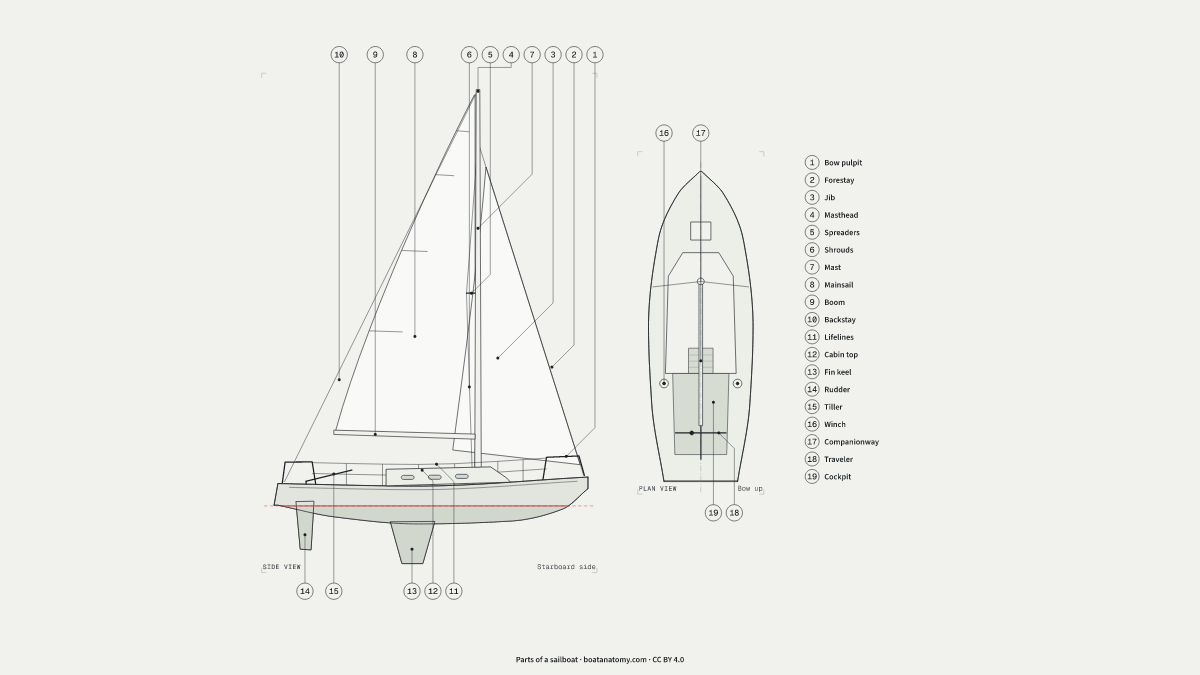

Parts of a sailboat
19 numbered parts · side view, plan view · prints portrait
-

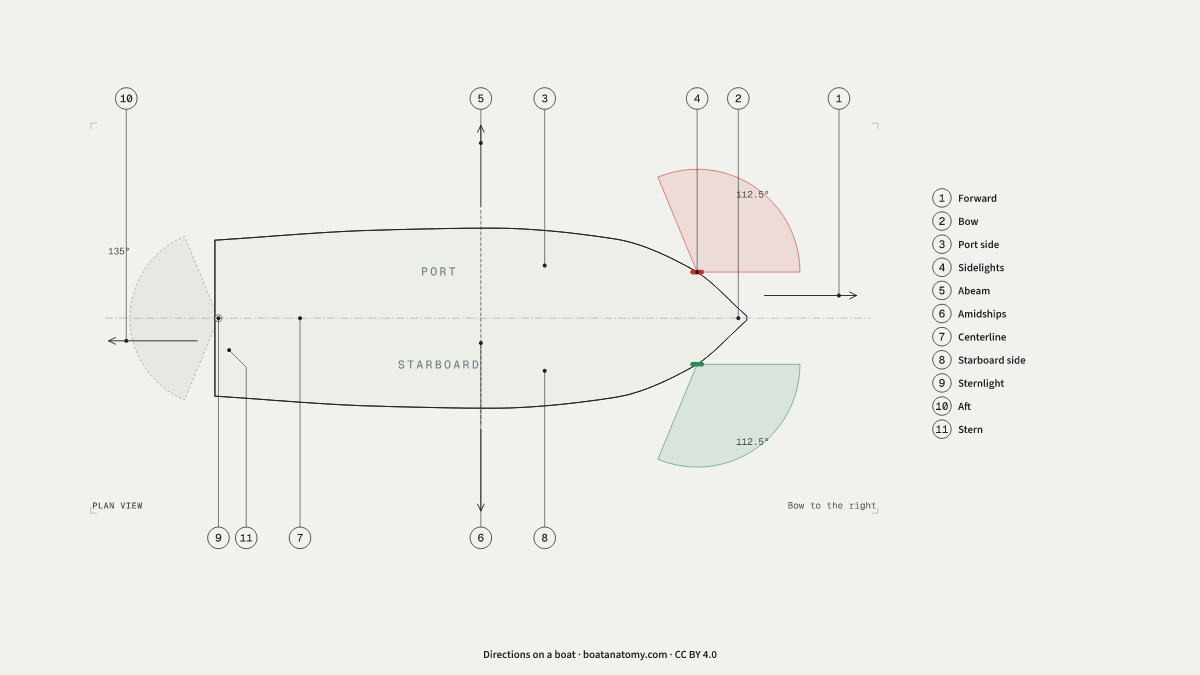

Directions on a boat
11 numbered parts · plan view · prints landscape
-
Parts of a hull in section
12 numbered parts · cross-section at midships · prints landscape
-

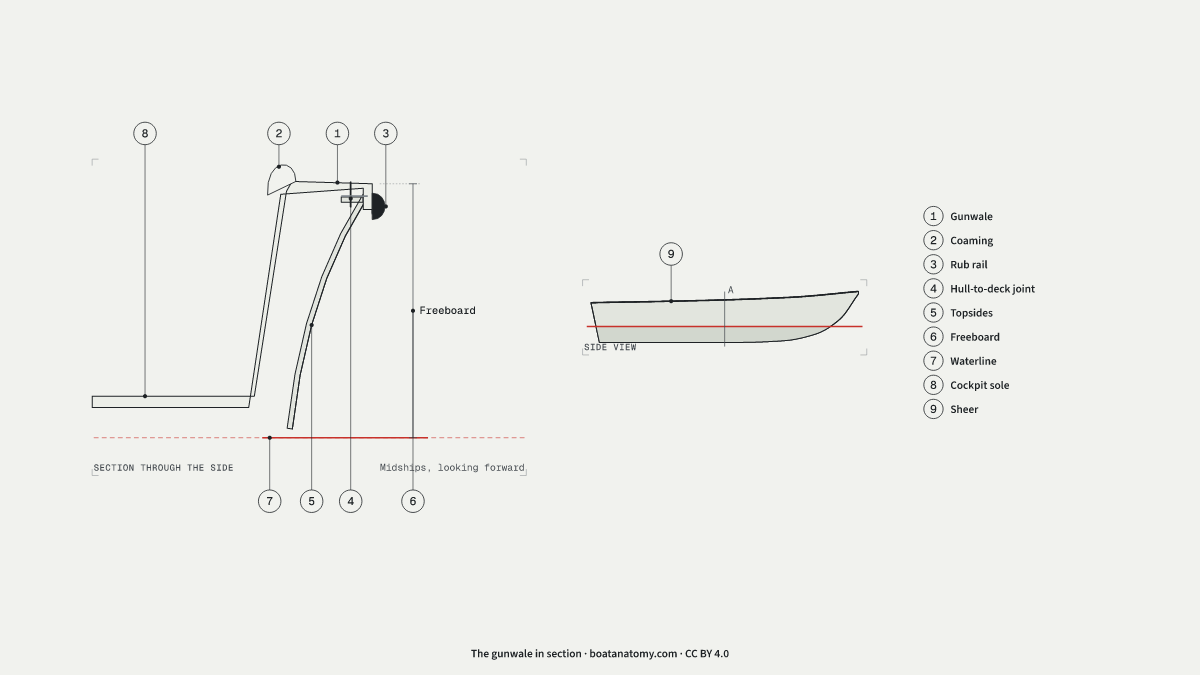

The gunwale in section
9 numbered parts · section through the side, side view · prints landscape
-

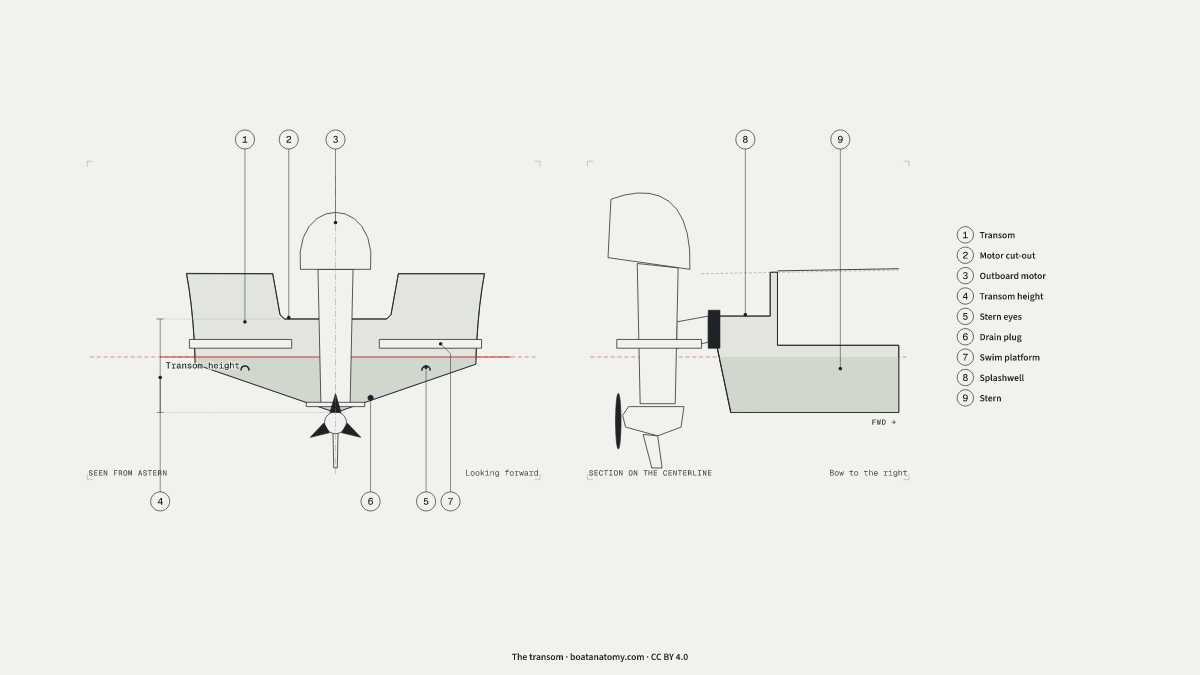

The transom
9 numbered parts · seen from astern, section on the centerline · prints landscape
-
Blank lines-plan sheet
Profile, plan and body-section panes with stations 0 to 10, a baseline and a title block · prints landscape
